DPC-4122 12.1″ Intel Celeron Processor Capacitive Touch Panel PC
● 12.1″ LED backlight LCD and Capacitive touch panel
● Fanless design, Front Panel IP65
● Embedded Intel Celeron Processor
● 2 COM, 4 USB, 2 GbE, HD Audio, VGA, HDMI
● Panel and VESA mounting
Darveen DPC-4000s series industrial embedded touch screen computer is a compact and durable human-computer interaction platform, which adopts ultra-thin, fanless and shockproof design. 4:3 and 16:9 capacitive projection touch screen can be selected to meet various industrial automation applications. The dpc-4000s series has high performance processor, with its stable system architecture, it has the advantages in industrial applications. In addition, the full range of products use aluminum alloy front panel and metal body materials, with excellent heat dissipation and rust resistance.
▌Specifications
| System | CPU | Intel Quad-Core Celeron J1900(2.0GHz) |
| Memory | 4GB SO-DIMM DDR3L-1333/1600 (Up to 8GB) | |
| Storage | 1 x 2.5″ Driver Bay for SATA HDD/SSD 1 x Full-size Mini-PCIe for mSATA SSD |
|
| Operating System | Windows 7/8.1/10 | |
| Display | Size | 12.1-inch |
| Resolution | 1024 ×768 | |
| Viewing Angle | 80/80/80/80 | |
| Brightness | 450 cd/m ² | |
| Backlight | LED | |
| LED Lifetime | 50000 hrs | |
| VGA | Up to 2560 x 1600 | |
| HDMI | Up to 1920 x 1080 | |
| Multi-Display | Dual display (LVDS + VGA/HDMI) | |
| Touchscreen | Type | Projected Capacitive Touch |
| Transparency | 87% | |
| Hitting life | 35 million times | |
| Surface hardness | ≥6H | |

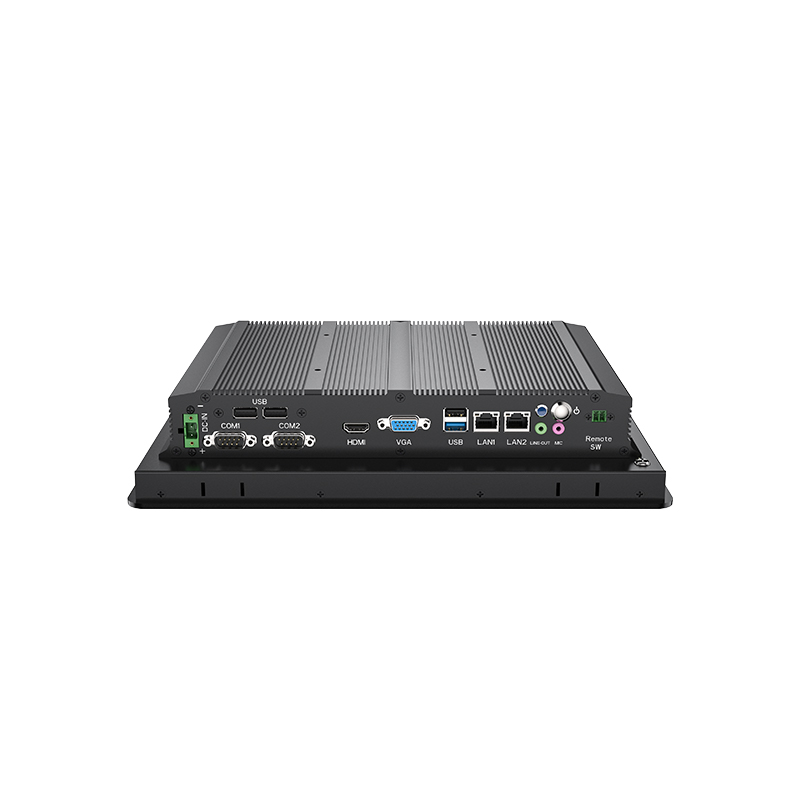

| I/O | Serial Port | 2 x RS-232 (COM1/2) |
| USB Port | 1 x USB3.0 3 x USB2.0 |
|
| Ethernet | 2 x GbE LAN | |
| Display | 1 x HDMI ,1 x VGA | |
| Audio | 1 x Line-out ,1 x Mic | |
| Others | 1 x DC-IN (2-Pin Phoenix) 1 x Remote switch connector 1 x ATX Power Switch |
|
| Expansion | Mini-PCIe | 1 x Full-size Mini-PCIe for mSATA 1 x Full-size Mini-PCIe |
| Power Specification | Power Input | DC 12V |
| Power Adapter | AC-DC, 12V@5A, 60W | |
| Power Consumption | 25W （Typ.） | |
| Environment | Operating Temperature | -10~50 °C |
| Storage Temperature | -20~60 ℃ | |
| Relative Humidity | 10%-90%,@ 40 °C (non-condensing) | |
| Vibration | 5~500Hz, 0.026 G ²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
| Certifications | CE, FCC | |
| Physical Characteristics | Meterial | Aluminum alloy panel, all-metal structure |
| Mounting Mode | Panel-mount, VESA-mount | |
| Dimension (W x L x H) | 310X248X62.5 mm | |
| Weight | 3.8Kg | |
| Packing List | Packing List | 1 x DPC-4122 |
| 1 x AC-DC Power Adapter | ||
| 1 x Certificate | ||
| 1 x Warranty Card | ||
| 8 x Panel Mounting Buckles |
