DPC-4152WR 15.6″ Intel Celeron Processor Capacitive Touch MES Workstation Panel PC
● 15″ LED backlight LCD and Capacitive Touch Panel
● Fanless design, Front Panel IP65
● Embedded Intel Celeron Processor

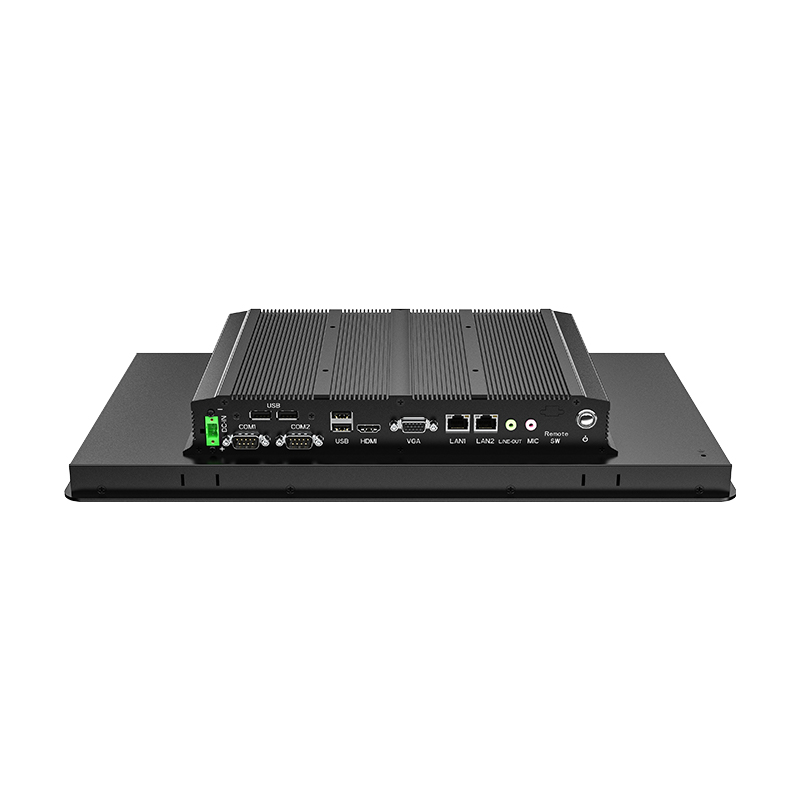

● 2 COM, 4 USB, 2 GbE, HD Audio, VGA, HDMI
● Panel and VESA mounting
Darveen MES workstation series industrial tablet computers adopt all-plane capacitive multi-touch screen, built-in RFID module, which uses ultra-thin, fanless and shockproof design. Can choose 4:3 and 16:10 multi-size range of projected touch screen to meet various applications of MES system in factories. MES workstation series uses low-power processors. by virtue of its stable system architecture, excels in industrial applications. In addition,the full range of products using aluminum alloy front panel and metal body material, with excellent cooling and anti-rust ability.
▌Specifications
| System | CPU | Intel Quad-Core Celeron J1900(2.0GHz) |
| Memory | 4GB SO-DIMM DDR3L-1333/1600 (Up to 8GB) | |
| Storage | 1 x 2.5″ Drive Bay for SATA HDD/SSD 1 x Full-size Mini-PCIe for mSATA SSD |
|
| Operating System | Windows 7/8.1/10 | |
| Display | Display Type | 15.6″TFT LED |
| Viewing Angle (H/V °)Size | 80/80/80/80 | |
| Size | 15.6-inch | |
| Resolution | 1366 x 768 | |
| Brightness | 300 cd/m ² | |
| Contrast Ratio | 500:1 | |
| Backlight | LED | |
| Backlight Life | 50000 Hrs | |
| VGA | Up to 2560 x 1600 | |
| HDMI | Up to 1920 x 1080 | |
| Multi-Display | Dual Display (LVDS + VGA/HDMI) | |
| Touchscreen | Type | Multi-touch projected capacitive |
| I/O | Serial Port | 2 x RS-232 (COM1/2) |
| USB Port | 1 x USB3.0 4 x USB2.0 |
|
| Ethernet | 2 x GbE LAN | |
| Display | 1 x HDMI,1 x VGA | |
| Audio | 1 x Line-out（Optional） 1 x Mic（Optional） |
|
| Others | 1 x DC-IN (2-Pin Phoenix) 1 x Pre-Switch |
|
| RFID | Frequency | 13.56Mhz |
| Baud Rate | 9600~115200 bits/s( Default 9600 ） | |
| Reading Distance | ≤10mm | |
| Protocol | ISO/IEC14443A 、ISO/IEC 14443B、ISO/IEC 15693 | |
| Expansion | Mini-PCIe | 1 x Full-size Mini-PCIe for mSATA 1 x Full-size Mini-PCIe |
| Power Specification | Power Input | DC 12V |
| Power Adapter | AC-DC, 12V@5A, 60W | |
| Power Consumption | 29W (Typ.) | |
| Environment | Operating Temperature | -10~50 °C |
| Storage Temperature | -20~60 ℃ | |
| Relative Humidity | 10%-90%,@ 40 °C (non-condensing) | |
| Vibration | 5~500Hz, 0.026 G ²/Hz, 2.16 Grms, X,Y, Z, 1 hour per axis | |
| Certifications | CE, FCC | |
| Physical Characteristics | Housing | Aluminum alloy panel, all-metal structure |
| Mounting Mode | Panel-mount, VESA-mount | |
| Dimension (W x L x H) | 431 x 242 x 65 mm | |
| Weight | 5.5Kg | |
| Packing List | Packing List | 1 x DPC-4152WR |
| 1 x AC-DC Power Adapter | ||
| 1 x Certificate | ||
| 1 x Warranty Card | ||
| 8 x Panel Mounting Buckles |
