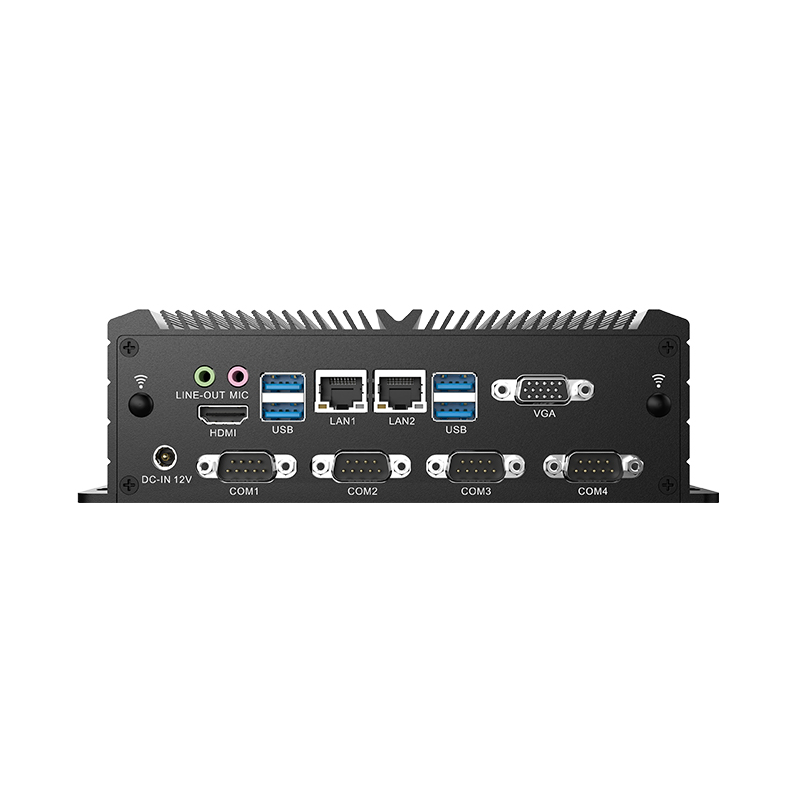

MBC-2300 Intel® Celeron®/Core™ i Fanless Box Computer with 6x COM (2x RS-232/485), 6x USB, 2x LAN
● Intel® Celeron®/Core™ i3/i5/i7 processor
● 6x COM (2x RS-232/485), 2x LAN, 6x USB, 1x VGA, 1x HDMI
● 1x 2.5″ SATA HDD/SSD, 1x mSATA
● 1x full length Mini PCIe, 1 x M.2 2230
● 12VDC power input
The MBC-2300 fanless industrial computer features a cableless design, ensuring excellent resistance to vibrations and interferences. Its modular design, featuring a CPU board that plugs into an I/O board, not only reduces the time and cost required for product updates but also allows for easy customization to meet specific customer application needs. Moreover, the MBC-2300 offers a wide range of I/O interfaces and expansion, including COM, GbE LAN, GPIO, WiFi, and 4G connectivity.
▌Specifications
| System | ||||||
| CPU | Intel® Celeron® J1900 | Intel® Core™ i3-5020U | Intel® Core™ i5-6300U | Intel® Core™ i3-8145U | Intel® Core™ i5-8265U | Intel® Core™ i7-8565U |
| CPU TDP | 10W | 15W | ||||
| Memory | 1x DDR3L 1333 MHz SO-DIMM up to 8GB | 2x DDR4 2133 MHz SO-DIMM up to 32GB | 2x DDR4 2400 MHz SO-DIMM up to 32GB | |||
| Storage | 1x 2.5″ SATA HDD 1x mSATA |
|||||
| BIOS | AMI UEFI | |||||
| Watchdog Timer | Software programmable supports 256 levels system reset | |||||
| I/O Ports | ||||||
| USB | 5x USB 2.0, 1x USB 3.0 | 4x USB 2.0, 2x USB 3.0 | 2x USB 2.0, 4x USB 3.0 | |||
| Serial | 6x COM (COM5/6 supports RS-232/485) | |||||
| Ethernet | 2x RJ45 GbE Intel® I210AT | |||||
| Display | 1x VGA, 1x HDMI | |||||
| SIM Card Slot | 1x SIM card slot | |||||
| DIO | 4x DI, 4x DO | |||||
| Antenna | 2x SMA antenna holes | |||||
| Expansion Slot | ||||||
| Mini PCIe | 1x Full length mini PCIe | |||||
| M.2 | 1 x M.2 2230 Key E | |||||
| RF Communication | ||||||
| Wi-Fi | Mini PCIe/M.2 expansion (optional) | |||||
| Cellular | Mini PCIe expansion (optional) | |||||
| Bluetooth | Mini PCIe/M.2 expansion (optional) | |||||
| GNSS | Mini PCIe expansion (optional) | |||||
| Audio | ||||||
| Audio | Mic in, line out | |||||
| Power | ||||||
| Button | Yes | |||||
| Remote Power On/Off | 2-pin remote switch | |||||
| DC Input | 12VDC | |||||
| Power Mode | AT/ATX | |||||
| Operating System | ||||||
| Windows | Windows 7, Windows 10 | Windows 10, Windows 11 | ||||
| Linux | Ubuntu | |||||
| Mechanical | ||||||
| Dimensions (W x D x H) | 196 x 148 x 59 mm (7.72 x 5.83 x 2.32 inches) | |||||
| Weight (N.W.) | 1.5 kg (3.31 lbs) | |||||
| Mounting | Wall mount | |||||
| Material | Aluminum alloy | |||||
| Environment | ||||||
| Operating Temperature | -10 to 60℃ (14 to 140°F) | |||||
| Storage Temperature | -20 to 60℃ (-4 to 140°F) | |||||
| Relative Humidity | 10% to 95% @ 40°C (104°F), non-condensing | |||||
| Certification | ||||||
| EMC | CE, FCC Class A | |||||
| MBC-2300-J1900 | Intel® Celeron® J1900, 2LAN, 6USB, 6COM, VGA, HDMI |
|---|---|
| MBC-2300-5020U | Intel® Core™ i3-5020U, 2LAN, 6USB, 6COM, VGA, HDMI |
| MBC-2300-8145U | Intel® Core™ i3-8145U, 2LAN, 6USB, 6COM, VGA, HDMI |
| MBC-2300-6300U | Intel® Core™ i5-6300U, 2LAN, 6USB, 6COM, VGA, HDMI |
| MBC-2300-8265U | Intel® Core™ i5-8265U, 2LAN, 6USB, 6COM, VGA, HDMI |
| MBC-2300-8565U | Intel® Core™ i7-8565U, 2LAN, 6USB, 6COM, VGA, HDMI |
