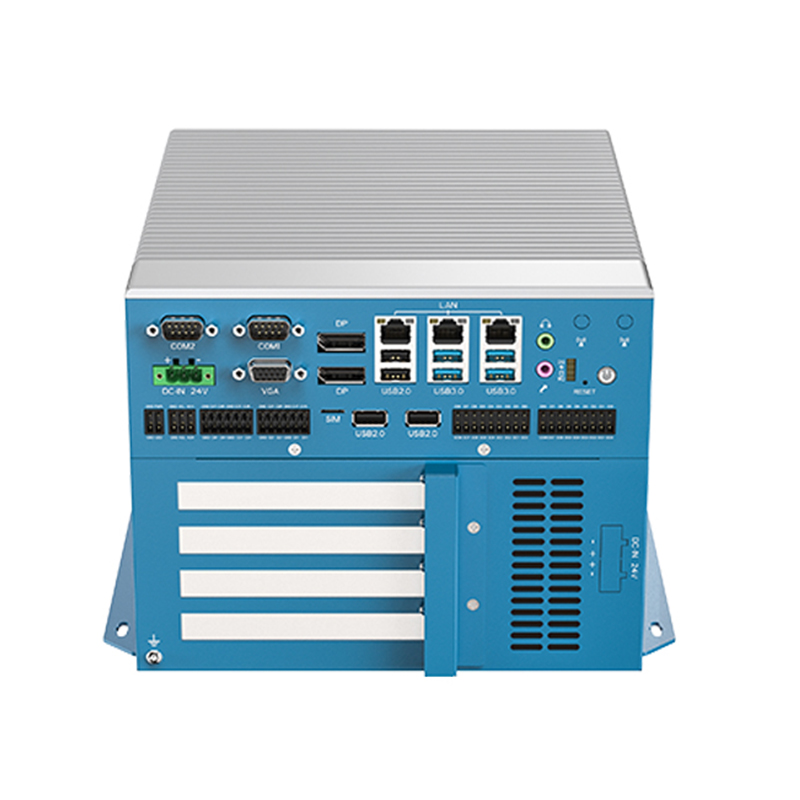

MIC-7222 Modular Industrial Computer with 2x PCI, 1x PCIe x16, 1x PCIe x2, 4 x LAN, 6 x COM , 6 x USB
● 6th/7th/8th/9th Gen Intel® Core™ i3/i5/i7/i9, Pentium®, Celeron® Processor
● 6x COM(3xRS-232/485), 4x LAN, 6x USB
● 2 x PCI, 1 x PCIe X16 1 x PCIe X4
● 2x DP, 1x VGA
● 1x 2.5″ SATA HDD/SSD, 1x M.2 SSD, 1x full length Mini PCIe
● 24VDC Power Input
The MIC series boasts a modular design that incorporates versatile expansion slots to cater to a wide range of application needs.Its robust aluminum housing provides excellent heat dissipation and exceptional EMI/impact/vibration resistance. MIC-7222 is specifically designed to support Intel® processors from 6th to 9th generation with LGA1151 socket compatibility. This makes it a perfect fit for embedded and industrial PC applications that require high-performance processors in compact spaces.
▌Specifications
| System | |
| CPU | LGA1151 socket 6th/7th/8th/9th gen Intel® processor |
| CPU TDP | 65W |
| Chipset | Intel® H110 |
| Memory | 2x DDR4 2133MHz SO-DIMM up to 32GB |
| Storage | 1x 2.5″ SATA HDD 1x M.2 2280 SATA |
| BIOS | AMI UEFI |
| Watchdog Timer | Software programmable supports 256 levels system reset |
| I/O Ports | |
| USB Port | 2x USB 2.0, 4x USB3.0 |
| Serial Port | 6x COM (3x RS-232/485) |
| Ethernet | 2 x Intel® i210, 1x Intel® i219-LM, 1x Intel® i225 |
| Display Port | 2x DP, 1x VGA |
| SIM Card Slot | 1x SIM |
| Antenna Hole | 2x SMA-type |
| Expansion Slot | |
| PCI/PCIe | 2x PCI, 1x PCIe x16, 1x PCIe x4 |
| Mini-PCIe | 1x full length Mini PCIe |
| M.2 | 1x M.2 M-Key 2280 |
| RF Communication | |
| Wi-Fi | Mini-PCIe Expansion (optional) |
| Cellular | Mini-PCIe Expansion (optional) |
| Bluetooth | Mini-PCIe Expansion (optional) |
| GNSS | Mini-PCIe Expansion (optional) |
| Audio | |
| Audio | Mic in, line out |
| Power | |
| Remote Power On/Off | 2-pin remote switch |
| DC Input | 24VDC |
| Input Type | 1x 3-pin terminal block connector |
| Power Mode | AT/ATX |
| Operating System | |
| Windows | Windows 7, Windows 10 |
| Linux | Ubuntu |
| Mechanical | |
| Dimensions (WxDxH) | 220 x 256 x 176mm(8.66 x 10.08 x 6.93 inches) |
| Weight (N.W.) | 5.6kg (12.35 lbs) |
| Mounting | Wall-mount |
| Material | Aluminum alloy |
| Environment | |
| Operating Temperature | -10 to 50℃ (14 to 122°F, with SSD Airflow 0.7m/s) |
| Storage Temperature | -40 to 80℃ (-40 to 176°F) |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | |
| EMC | CE, FCC Class A |
