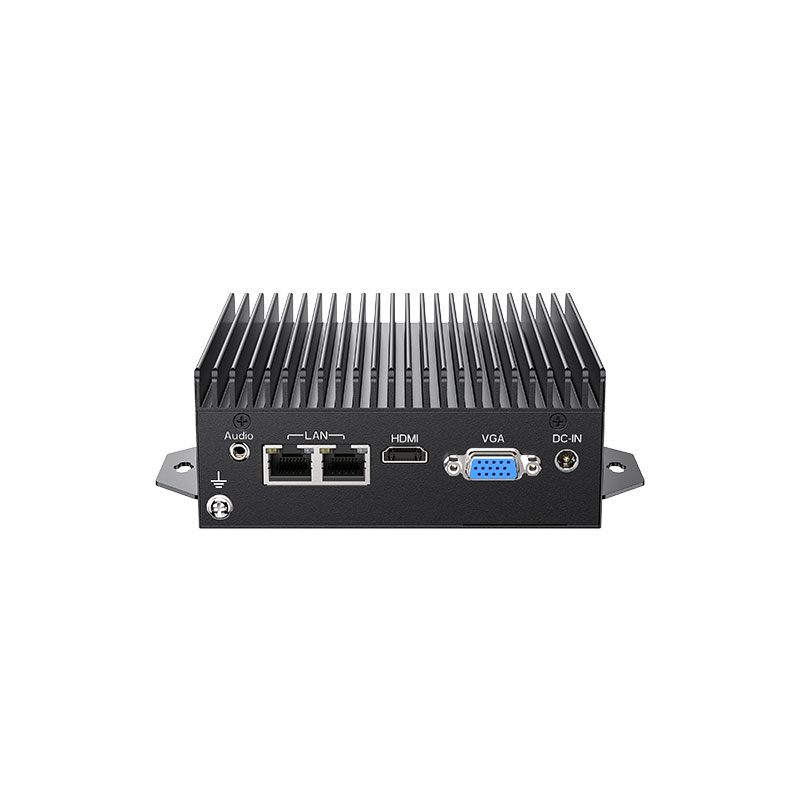

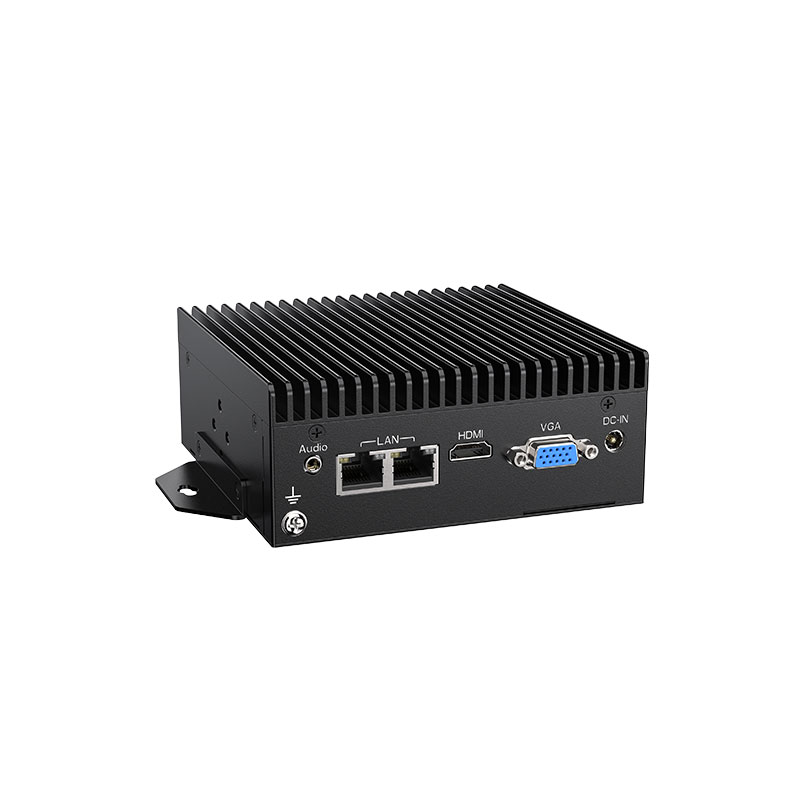

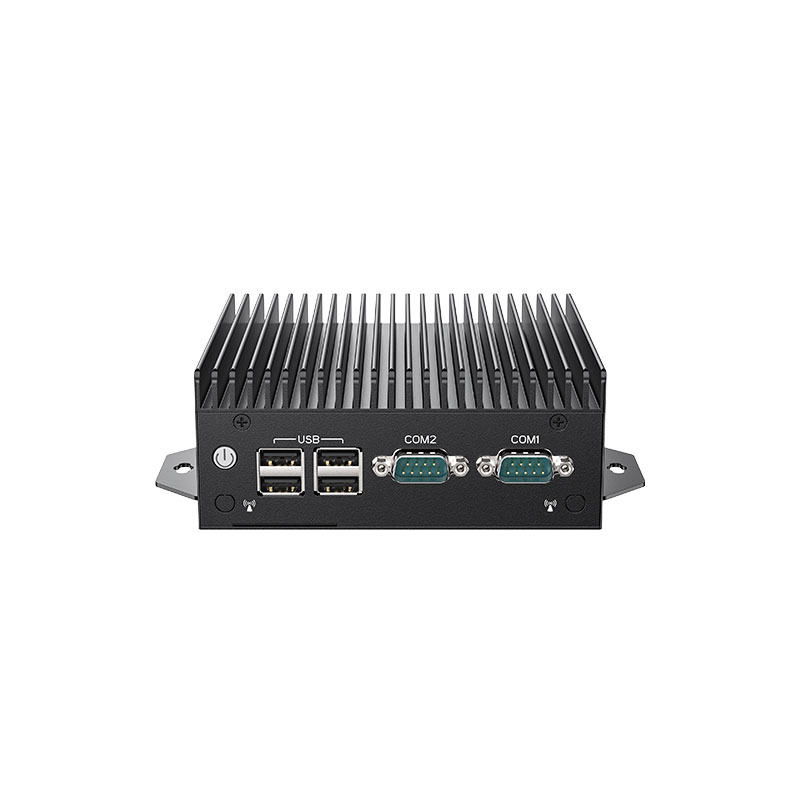

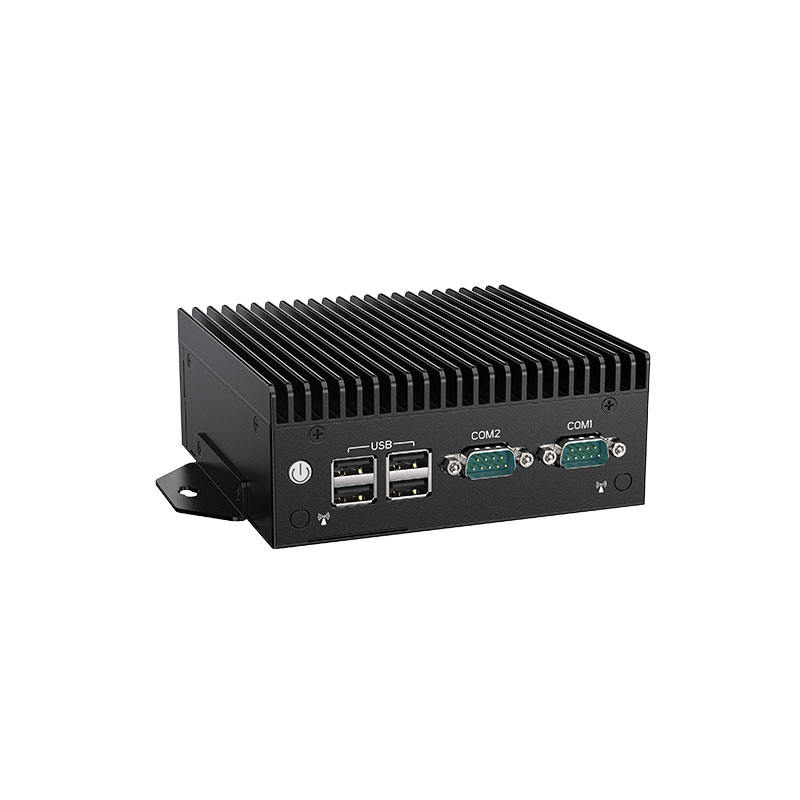

NBC-1122 Intel® Celeron® Fanless Box Computer with 2x COM, 4x USB, 2x LAN

● Intel® Celeron® J1900/J4105 processor
● 2x COM (1x RS-232/485), 2x LAN, 4x USB, VGA, HDMI
● 1x 2.5″ SATA HDD/SSD, 1x mSATA
● 1x Full length Mini PCIe, 1 x M.2 2230
● 12VDC power input

NBC-1122 is an advanced industrial computer equipped with extensive I/O options, offering great flexibility and effortless Mini PCIe expansion capabilities. It boasts wide-input power ranges, wide temperature tolerances, and enhanced structural durability, making it an excellent choice for industrial applications.

▌Specifications

System
CPU	Intel® Celeron® J1900	Intel® Celeron® J4105
CPU TDP	10W
Memory	1x DDR3L 1333 MHz SO-DIMM up to 8GB	1x DDR4 2400 MHz SO-DIMM up to 16GB
Storage	1x 2.5″ SATA HDD 1x mSATA
BIOS	AMI UEFI
Watchdog Timer	Software programmable. Supports 256 levels system reset
I/O Ports
USB	3x USB 2.0, 1x USB 3.0	2x USB 2.0, 2x USB 3.0
Serial	2x COM (COM1 supports RS-232/485)	2x COM (RS-232)
Ethernet	2x RJ45 GbE RTL8111H/8106E
Display	1x VGA, 1x HDMI
SIM Card Slot	1x SIM card slot(Inside)	NA
Antenna	2x SMA antenna holes
Expansion Slot
Mini PCIe	1x Full length Mini PCIe
RF Communication
Wi-Fi	Mini PCIe expansion (optional)
Cellular	Mini PCIe expansion (optional)	NA
Bluetooth	Mini PCIe expansion (optional)
GNSS	Mini PCIe expansion (optional)
Audio
Audio	Mic in, line out
Power
Button	Yes
DC Input	12VDC
Power Mode	AT/ATX
Operating System
Windows	Windows 7, Windows 10	Windows 10
Linux	Ubuntu
Mechanical
Dimensions (W x D x H)	130x 125x 53mm (5.12 x 4.92 x 2.09 inches)
Weight (N.W.)	0.9 kg (1.98 lbs)
Mounting	Wall mount
Material	Aluminum alloy
Environment
Operating Temperature	-10 to 60℃ (14 to 140°F)
Storage Temperature	-20 to 60℃ (-4 to 140°F)
Relative Humidity	10% to 95% @ 40°C (104°F), non-condensing
Certification
EMC	CE, FCC Class A
