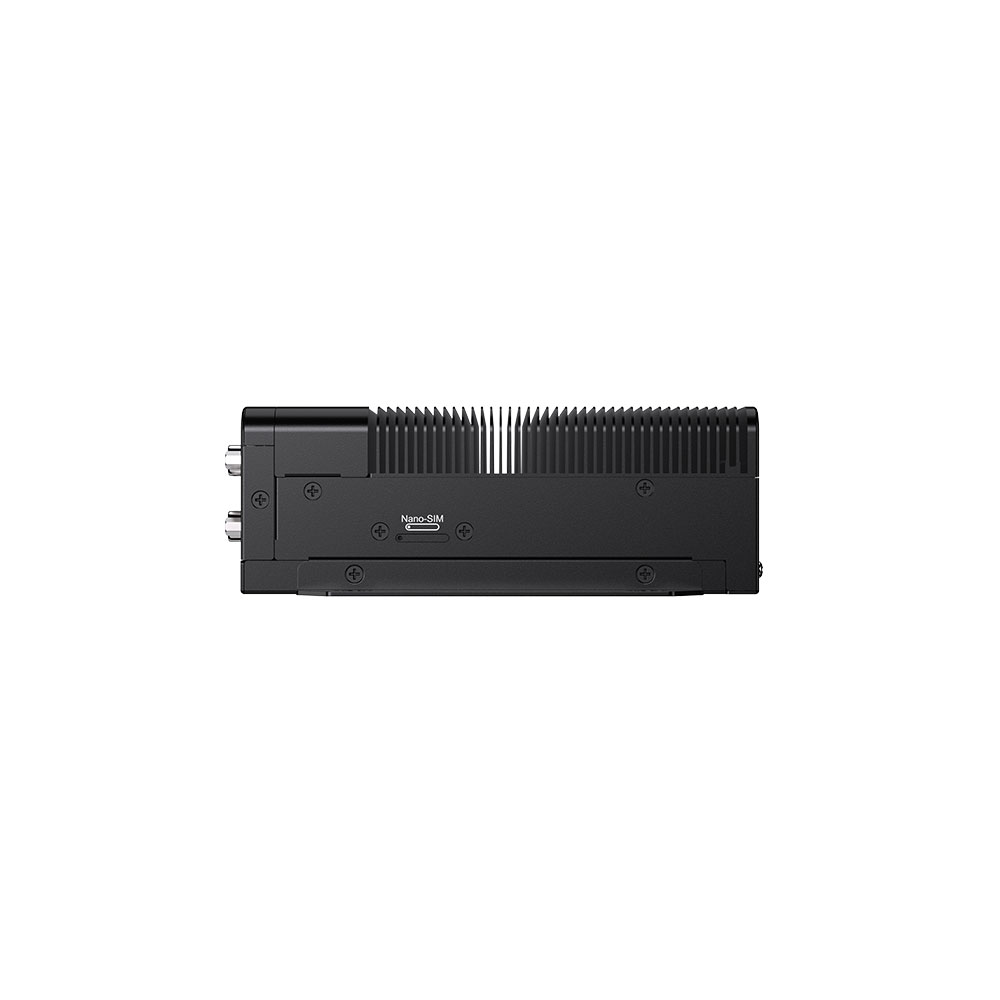

NBC-2412 Fanless Box Computer with Intel® Core™ i3/i5/i7 Processor, 2x LAN, 6x COM
● Intel® Core™ i3/i5/i7 processor
● 6x COM, 2x LAN, 8x USB, 1x HDMI, 1x VGA
● 2x CAN2.0 (optional), 16x Opto-isolated DIO(optional)
● 9 to 36VDC power input
The NBC-2412 fanless industrial computer boasts a cableless design, delivering superior resistance to vibrations and electromagnetic interference. Its innovative modular architecture, which integrates a CPU board with a plug-in I/O board, significantly streamlines product upgrades, reducing both time and costs. This design also enables effortless customization to align with diverse customer application requirements. Additionally, the NBC-2412 provides extensive I/O interfaces and expansion options, including COM ports, GbE LAN, GPIO, WiFi, and 4G connectivity, ensuring versatile and reliable performance in demanding industrial environments.
▌Specifications.
| System | ||||
| CPU | Intel® Core™ i3-8145U/i5-8265U | Intel ® Core™ i3-10110U/i5-10210U/i7-10510U | Intel ® Core™ i3-1115G4/i5-1145G7/i7-1185G7 | Intel ® Core™ i3-1215U/i5-1235U/i7-1255U |
| CPU TDP | 15W | |||
| Memory | 1x DDR4 2666 MHz SO-DIMM up to 32GB | 1x DDR4 3200 MHz SO-DIMM up to 32GB | ||
| Storage | 1x mSATA | 1x M.2 2280 NVME | ||
| BIOS | AMI UEFI | |||
| Watchdog Timer | Software programmable supports 256 levels system reset | |||
| I/O Ports | ||||
| USB | 6x USB 2.0, 2x USB 3.0 | |||
| Serial | 6x COM (1x RS-232/422/485, 5x RS232) | 6x COM (1x RS-232/485, 1x RS-232/422/485, 4x RS232) | ||
| Ethernet | 2x RJ45 GbE Intel® I210AT | |||
| Display | 1x HDMI, 1x VGA | |||
| SIM Card Slot | 1x SIM card slot (inside) | |||
| DIO | 16x Opto-isolated DIO(optional) | |||
| CAN Bus | 2x CAN 2.0B(optional) | |||
| Antenna | 3x SMA antenna holes | |||
| Expansion Slot | ||||
| Mini PCIe | 1x Full length Mini PCIe | N/A | ||
| M.2 | N/A | 1x M.2 2280 NVME, 1x M.2 2230 E-Key | ||
| RF Communication | ||||
| Wi-Fi | Mini PCle | M.2 2230 E-Key | ||
| Cellular | Mini PCIe expansion | |||
| Bluetooth | Mini PCle | M.2 2230 E-Key | ||
| GNSS | Mini PCIe | |||
| Audio | ||||
| Audio | Mic in, line out | |||
| Power | ||||
| Button | Yes | |||
| Remote Power On/Off | 4-Pin Remote SW & Power LED | |||
| DC Input | 9-36VDC | |||
| Power Mode | AT/ATX | |||
| Operating System | ||||
| Windows | Windows 10/11 | |||
| Linux | Ubuntu | |||
| Mechanical | ||||
| Dimensions (W x D x H) | 200 x 154 x 56 mm (7.87 x 6.06 x 2.21 inches) | |||
| Weight (N.W.) | 2 kg (4.41 lbs) | |||
| Material | Aluminum alloy | |||
| Environment | ||||
| Operating Temperature | -10 to 60℃ (14 to 140°F) | |||
| Storage Temperature | -20 to 60℃ (-4 to 140°F) | |||
| Relative Humidity | 10% to 95% @ 40°C (104°F), non-condensing | |||
| Certification | ||||
| EMC | CE, FCC Class A | |||
