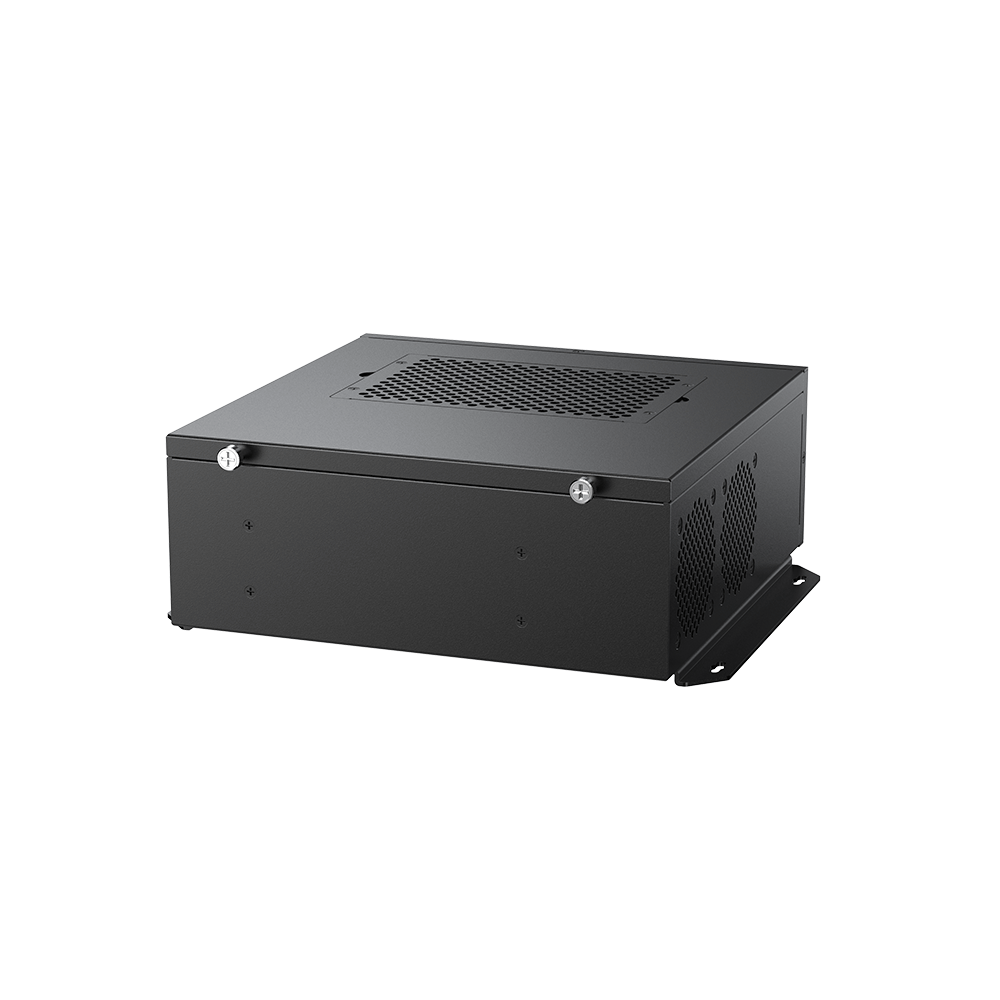

VBC-210 Machine Vision Computer with Intel® LGA1151 6/7/8/9th Core™ I3/I5/I7 CPU, 6x Intel® LAN (4POE), 16x Opto-isolated DIO
● Intel® B365 Chipset
● 6x Intel® LAN(4 x POE), 16x Opto-isolated DIO
● 8x USB 3.0, 6 x COM
● 1 x VGA, 1 x HDMI
Darveen VBC series products for machine vision applications, which support desktop high-performance CPU, integrate 6xINTEL LAN , support 4xPOE, provide 16xisolated GPIO, can expand the motion control card, and are widely used in factory automation, pharmaceutical production line, automobile production line robot arms.
▌Specifications
| System | |
| CPU | Intel® LGA1151 6/7/8/9th Core I3/I5/I7 CPU |
| Chipset | Intel B365 |
| Memory | 2 x DDR4-2133/2666 MHz DIMM up to 64GB |
| Storage | 1 x 2.5″ HDD 1 x mSATA |
| Graphics | By CPU |
| TPM | TPM2.0 (optional) |
| I/O Ports | |
| USB Port | 8x USB3.0 |
| Serial Port | 6x COM (2x RS-232/485) |
| Ethernet | 6 x Intel LAN for GbE(4 x POE Op@ons) |
| Display Port | 1x VGA, 1x HDMI |
| SIM Card Slot | 1x SIM |
| DIO | 16 x Opto-isolated DIO(Options) |
| Antenna Hole | 2x SMA-type |
| Expansion Slot | |
| Mini-PCIe | 1 x full-size mini PCIe |
| RF Communication | |
| Wi-Fi | Mini-PCIe Expansion (optional) |
| Cellular | Mini-PCIe Expansion (optional) |
| Bluetooth | Mini-PCIe Expansion (optional) |
| GNSS | Mini-PCIe Expansion (optional) |
| Audio | |
| Audio | Mic in, line out |
| Power | |
| Remote Power On/Off | 4-Pin remote & LED |
| DC Input | 9-28VDC |
| Input Type | 1x 2-pin terminal block connector |
| Operating System | |
| Windows | Windows 7/10/11 |
| Linux | Ubuntu |
| Mechanical | |
| Dimensions (WxDxH) | 230 x 230 x 88mm (8.3 x 8.3 x 2.03 inches) |
| Weight (N.W.) | 2kg (4.41 lbs) |
| Mounting | Wall-mount |
| Material | Sheet Metal |
| Environment | |
| Operating Temperature | -0 to 60℃ (32 to 140°F, with SSD Airflow 0.7m/s) |
| Storage Temperature | -20 to 85℃ (-4 to 185°F) |
| Relative Humidity | 10% to 95% (non-condensing) |
