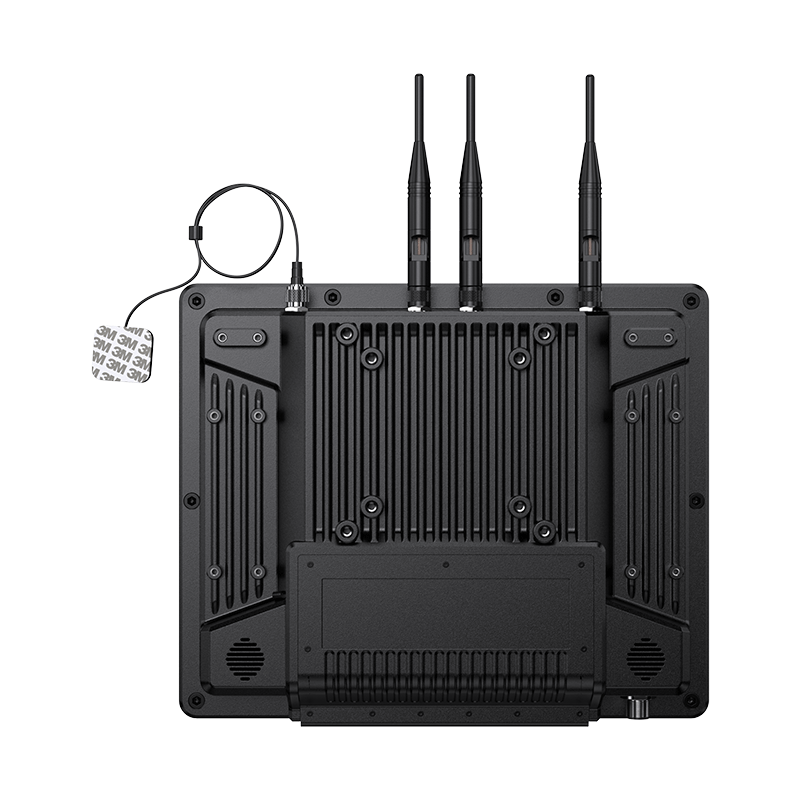

VT-740A 10.4″ Android 11 Vehicle Mount Computer with RK3399 Processor
● 10.4″ TFT-LCD with projective capacitive touchscreen
● Front panel integrated with function key control
● Rugged aluminum enclosure and fanless design
● IP65 protection against water and dust
● Compliant with MIL-STD-810G vibration testing standards
● Wide range 8-36VDC power input with ignition control
● Flexible expansion capability for Wi-Fi 5, Bluetooth 4.2, LTE/5G, GNSS
The VT-740A is a rugged 10.4-inch Android-based vehicle mount computer specifically designed for trucks, buses, forklifts, and various other applications. The VT-740A features a high-performance 6-core processor, an integrated 10.4-inch TFT LCD display with a projective capacitive touchscreen for enhanced usability. It also comes with built-in Wi-Fi 5, Bluetooth 4.2, 4G LTE/5G, and GNSS modules, enabling seamless real-time communication connections. The VT-740A boasts a fanless design, ensuring efficient cooling, and supports a wide temperature range and wide-range DC input. It is MIL-STD compliant and IP65 waterproof and dustproof, allowing it to withstand harsh operating conditions.
▌Specifications
| Display | |
| Size | 10.4 inch (4:3) |
| Touch Type | Projected capacitive multi touch |
| Display Type | TFT LCD |
| Resolution | 1024 x 768 |
| Luminance | 400 nits |
| Contrast Ratio | 1400: 1 |
| View Angles | 89 (left), 89 (right), 89 (up), 89 (down) |
| Color | 16.2M |
| System | |
| CPU | Rockchip RK3399, dual core A72 + quad core A53 (1.8 GHz) |
| Memory | 4GB DDR4-1866 on board |
| Storage | 32GB EMMC on board |
| Keypad & Keyboard | |
| Keypad | Power On/off Brightness adjustment F1-F6 user-defined function keys Power LED indicator |
| I/O Ports | |
| USB | 1x USB 3.0/OTG (Type A) 1x USB 2.0 (Type A) |
| Serial | 1x RS-232 (DB9) |
| Ethernet | 1x GbE LAN (RJ45) |
| SIM Card Slot | 1x Nano SIM socket |
| TF Card Slot | 1x TF Socket (up to 128GB) |
| Antenna | 2-4x TNC connector for external antenna (Wi-Fi, Bluetooth, WWAN, GPS) |
| RF Communication | |
| Wi-Fi | Wi-Fi 5: 802.11a/b/g/n/ac, 2.4G/5G |
| Cellular | 4G LTE 5G, NSA/SA (optional) |
| Bluetooth | Bluetooth 4.2 |
| GNSS | GPS, GLONASS, Galileo, BeiDou |
| Audio | |
| Speaker | 8Ω/2W, dual studio speakers |
| Power | |
| DC Input | 8 to 36VDC |
| Power Consumption | 14W (Typ.) |
| Power Mode | ATX (default), AT |
| Operating System | |
| Android | Android 11 |
| Mechanical | |
| Dimensions (W x D x H) | 280 x 230 x 69 mm (11.02 x 9.4 x 2.7 inches) |
| Weight (N.W.) | 3.0 kg (6.6 lbs) |
| Mounting Mode | VESA 75 and 100 |
| Material | Die-casting aluminum with heavy duty metal |
| Environment | |
| Operating Temperature | -20 to 60℃ (-4 to 140°F) |
| Storage Temperature | -40 to 70℃ (-40 to 158°F) |
| Relative Humidity | 95% @ 70°C (158°F), non-condensing |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP Rating | IP65 compliant (I/O interface must be closed) |
| Certification | |
| EMC | CE, FCC |
