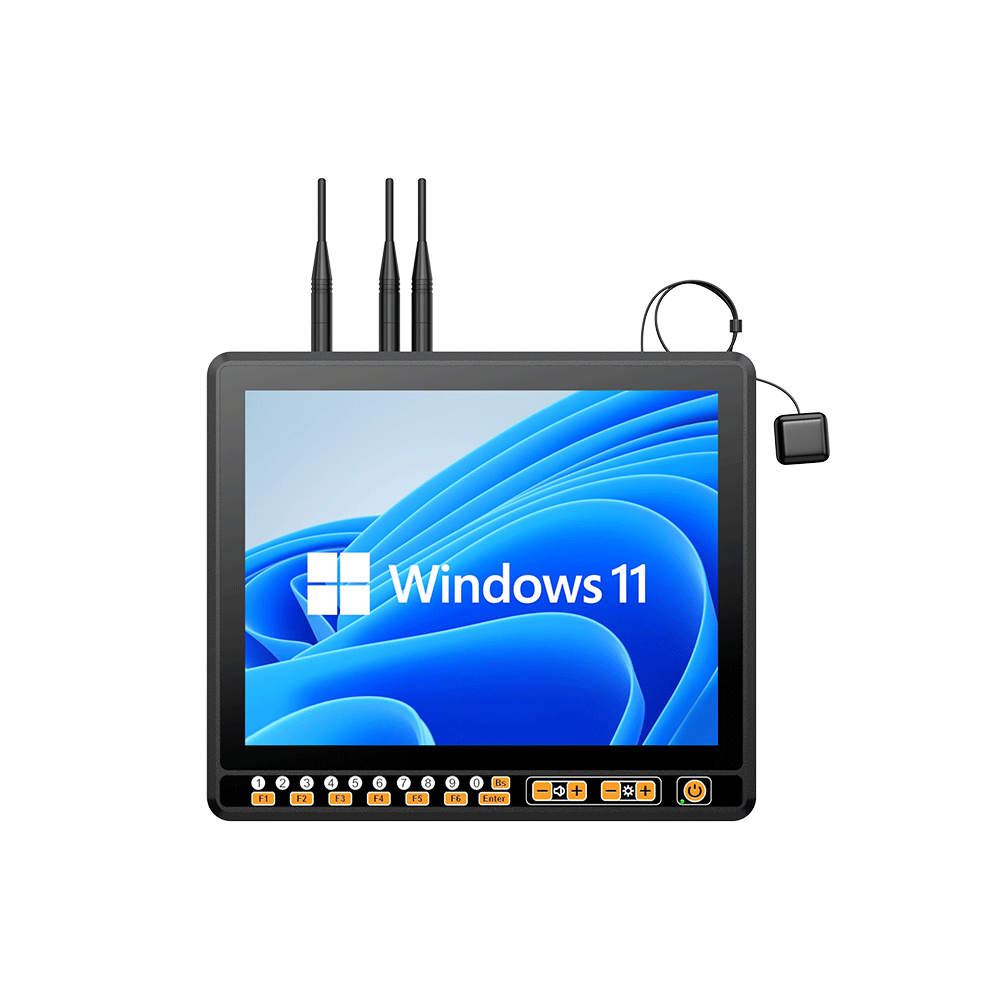

VT-876 12.1″ Windows Vehicle Mount Computer with Intel® Celeron J6412 Processor
● 12.1″ TFT-LCD with resistive or projected capacitive touchscreen
● Front panel integrated with numeric function key control
● Rugged aluminum enclosure and fanless design
● IP66 protection against water and dust
● Compliant with MIL-STD-810H vibration testing standards
● Wide range 8-36VDC power input with ignition control
● Flexible expansion capability for Wi-Fi 7, Bluetooth 5.4, LTE, 5G, GNSS, CAN2.0B
The VT-876 is a rugged vehicle-mounted computer equipped with an Intel® Celeron® J6412 processor and Windows 11, delivering powerful computing capabilities in mobile settings. It features a 12.1-inch industrial touch screen, WiFi 7, Bluetooth 5.4, and 4G/5G connectivity, along with GNSS for precise location tracking. With a wide DC input of 8 to 36V, it’s ideal for warehousing, logistics, and container transport. The VT-876 is built to withstand tough conditions, meeting MIL-STD-810H for shock and vibration resistance and IP66 for dust and water protection, ensuring reliable operation in the most demanding environments.
▌Specifications
| Display | |
| Size | 12.1 inch (4:3) |
| Touch Type | Projected capacitive multi touch, 5-wire resistive touch (optional, by request) |
| Display Type | TFT LCD |
| Resolution | 1024 x 768 |
| Luminance | 1000 nits |
| Contrast Ratio | 1000: 1 |
| View Angles | 85 (left), 85 (right), 85 (up), 85 (down) |
| Color | 16.7M |
| System | |
| CPU | Intel® Celeron® J6412, quad core (2.0GHz) |
| Chipset | Intel® Elkhart Lake Platform |
| Memory | 4GB DDR4-2666 SO-DIMM (up to 32GB) |
| Storage | 128GB M.2 SSD (up to 2TB) |
| Graphics | Intel® Iris® Xe Graphics |
| BIOS | AMI UEFI BIOS |
| Keypad & Keyboard | |
| Keypad | Power on/off Brightness and volume adjustment 0-9 numeric, Enter and Backspace F1-F6 user-defined function keys Power LED indicator |
| I/O Ports | |
| USB | 2x USB 3.0 (Type A) |
| Serial | 1x RS-232/422/485 (COM1 supports 5V/12V, DB9) 1x RS-232 (COM2 supports 5V, DB9) |
| Ethernet | 1x GbE LAN |
| SIM Card Slot | 1x SIM socket |
| Audio | 3.5mm Audio Jack (Mic-in/Line-out) |
| Antenna | 2-8x TNC connector for external antenna (Wi-Fi, Bluetooth, WWAN, GPS) |
| RF Communication | |
| Wi-Fi | Wi-Fi 6E: 802.11a/b/g/n/ac/ax, 2.4G/5G/6G (optional) Wi-Fi 7: 802.11a/b/g/n/ac/ax/be, 2.4G/5G/6G (optional) |
| Cellular | 4G, LTE (optional) 5G, NSA/SA (optional) |
| Bluetooth | Bluetooth 5.3 (Depends on Wi-Fi 6E, optional) Bluetooth 5.4 (Depends on Wi-Fi 7, optional) |
| GNSS | GPS, GLONASS, Galileo, BeiDou (optional, Ublo x NEO M8N) |
| Audio | |
| Speaker | 8Ω/2W, mono speaker |
| Power | |
| DC Input | 8 to 36VDC |
| Power Consumption | 18W (Typ.) |
| Ignition On/Off | Power on delay, default 10 seconds Power off delay, default 10 seconds (on/off delay time can be changed via BIOS setting) |
| Battery | 7.2V 3350mAh (optional) |
| Power Mode | ATX (default), AT |
| Operating System | |
| Windows | Windows 11 IoT Enterprise LTSC Windows 11 Pro Windows 10 Pro Windows 10 IoT Enterprise LTSC |
| Mechanical | |
| Dimensions (W x D x H) | 300 x 260 x 58 mm (11.8 x 10.24 x 2.28 inches) |
| Weight (N.W.) | 3.8 kg (8.4 lbs) |
| Mounting Mode | VESA 75 and 100 |
| Material | Die-casting aluminum with heavy duty metal |
| Environment | |
| Operating Temperature | -30 to 60℃ (-22 to 140°F) |
| Storage Temperature | -40 to 70℃ (-40 to 158°F) |
| Relative Humidity | 95% @ 70°C (158°F), non-condensing |
| Shock | MIL-STD-810H Method 514.8 Procedure I |
| Vibration | MIL-STD-810H Method 516.8 Procedure I |
| IP Rating | IP66 compliant (I/O interface must be closed) |
| Certification | |
| EMC | CE, FCC |
